3F210 foot pedal valve
Yister Pneumatic High flow 3F210 Foot Operated Control Valve 3F210-06 3F210-08

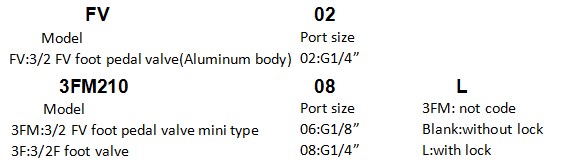

Order code
Symbol
Technical parameter
|
Model |
FV-02 |
3F210-06 |
3FM210-06 |
3F210-08 |
3F210-08L |
||||
|
Fluid |
Air |
||||||||
|
Acting |
Direct acting type controlled by foot normally closed |
||||||||
|
Port size |
G1/4” |
G1/8” |
G1/8” |
G1/4” |
G1/4” |
||||
|
Valve type |
3/2 way |
||||||||
|
Pressure range |
0-0.8MPa |
||||||||
|
Proof pressure |
1.5MPa |
||||||||
|
Temperature |
-20℃~70℃ |
||||||||
|
Body material |
FV:Aluminum alloy ;3FM:Plastic ;3F:Aluminum alloy |
||||||||
|
Lubrication |
No required |
||||||||
Feature
3-way, 2-position manual air control valves 3F210-06/08 are designed to offer smooth manual operation no matter which actuator is used. Constructed of durable materials for long service life.
