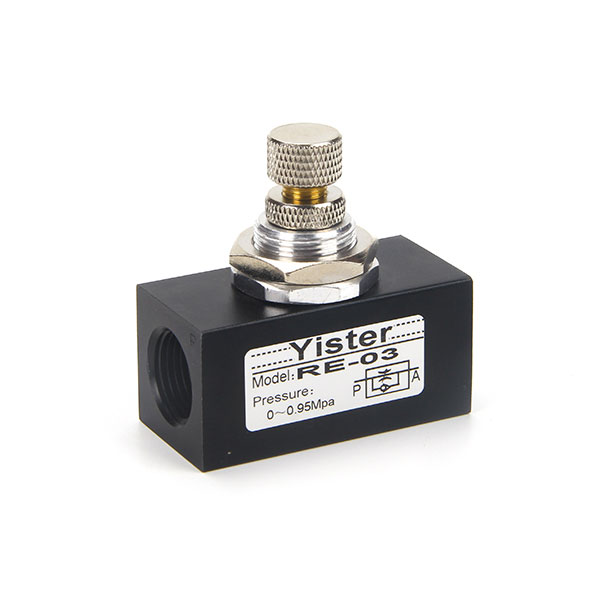

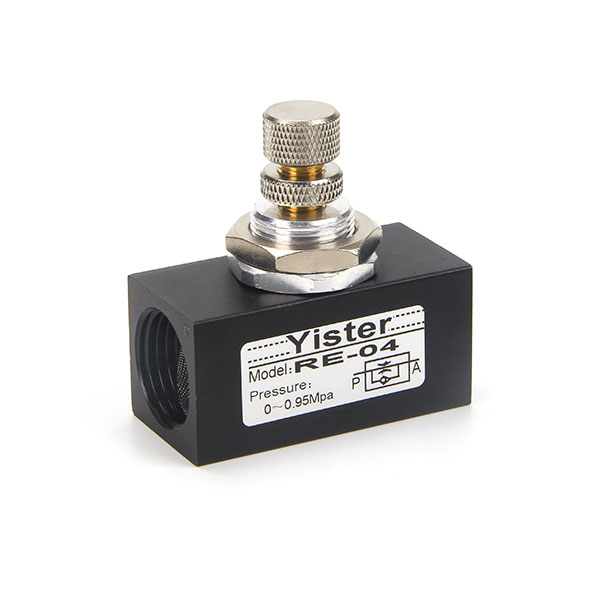

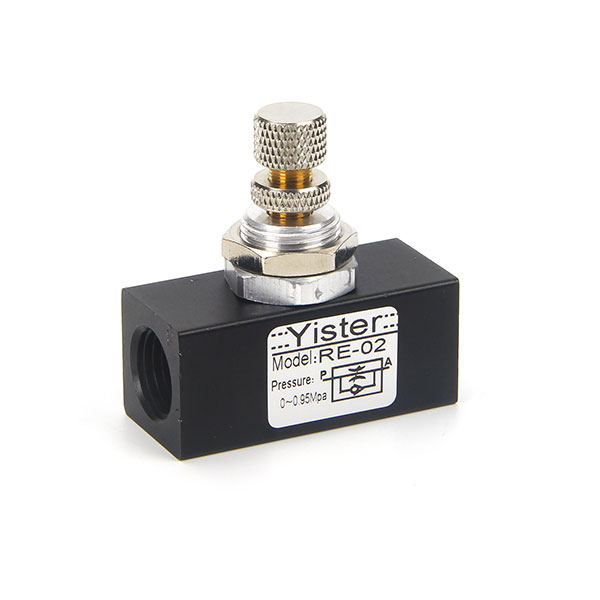

RE Series Flow Control Valve
RE series Pneumatic one way flow control valve
Order code
Symbol
Technical parameter
|
Model No |
RE-01 QE-01 |
RE-02 QE-02 |
RE-03 QE-03 |
RE-04 QE-04 |
|
Fluid |
Air |
|||
|
Port size |
G1/8” |
G1/4” |
G3/8” |
G1/2” |
|
Pressure range |
0-0.95MPa |
|||
|
Temperature |
-5℃~60℃ |
|||
Feature
RE Series flow control one-way non-return throttle check valve
Body Material Aluminum Alloy
Port Size G1/8”,G1/4”,G3/8,G1/2”
Pressure range:0~0.98Mpa
Compact design,small volume,light weight
Easy operation,sensitive of Respond
High regulating accuracy
Flow direction one way type
